Pioneer SX-990 receiver eladó

[Erno982]

Új ára: 100.000 Ft

[Erno982]

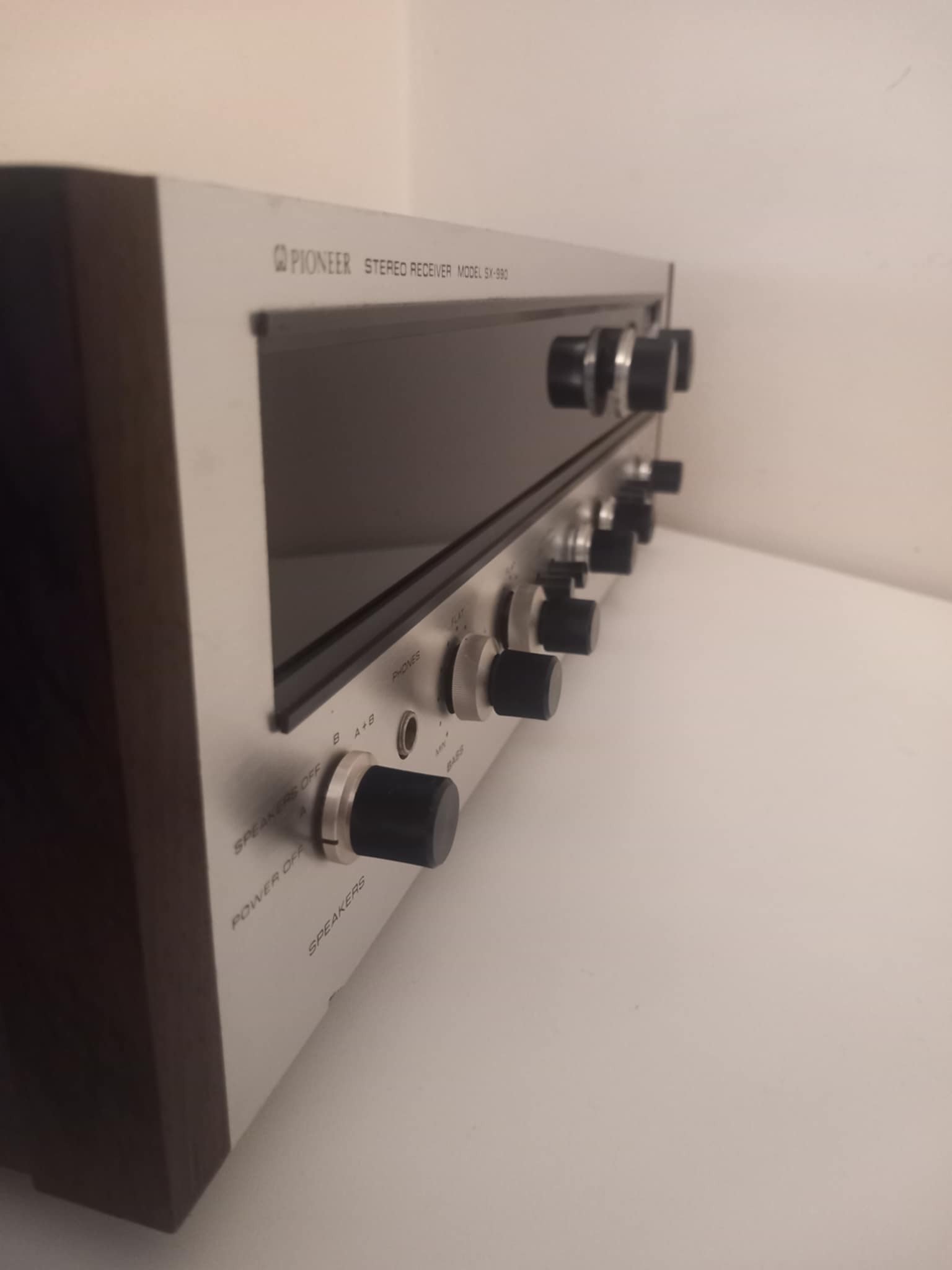

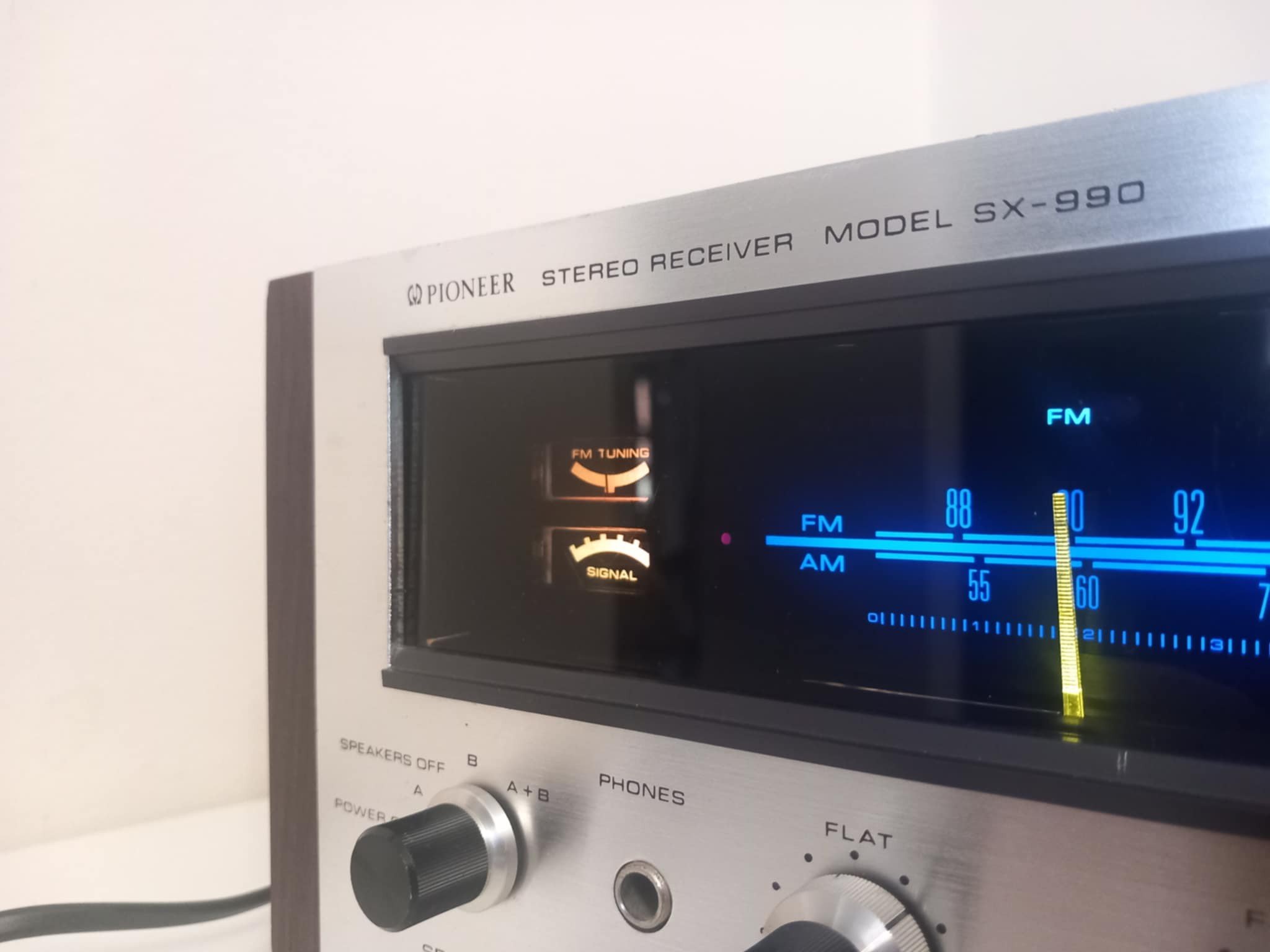

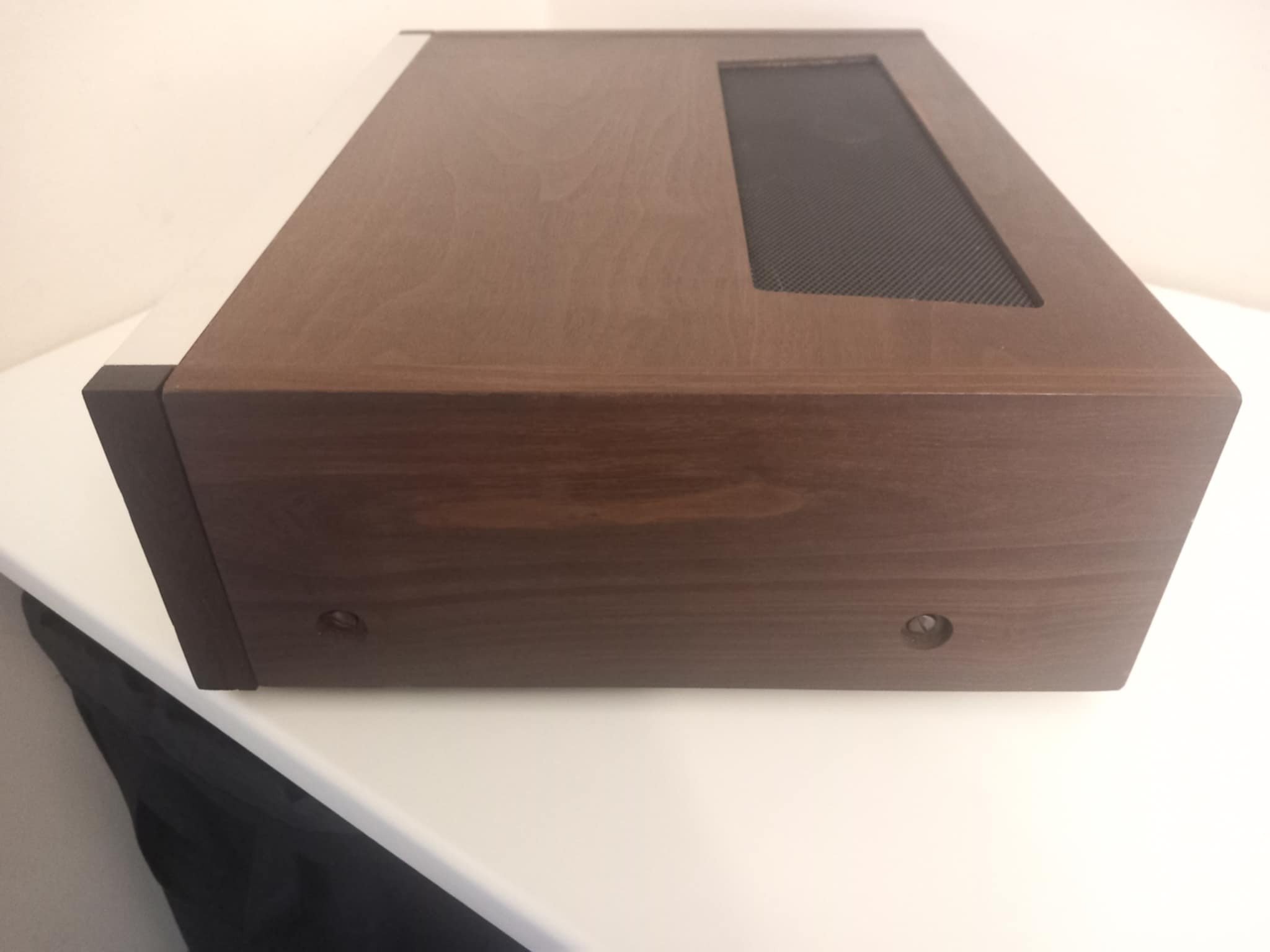

Pioneer SX-990 receiver eladó.
Kiváló készülék a hetvenes évekből.
Gyönyörű telt, részletes hangja van.
Van rajta pár használati karcolás, 1 sérülés, de műszakilag tökéletes állapotban van.
Az A oldali hangkivezetés banándugókat kapott.
Manufacturer: Pioneer
Model: SX-990
Year of manufacture: 1969 - 1972
Made in: Japan
Color: Black / Silver
Remote control: no
Power consumption: 190 W max.
Dimensions: 459 x 145 x 369 mm (WxHxD)
Weight: approx. 11.4 kg
Original price approx.: 1'523 DM (1970)
Connections
Number of inputs:
2x phono (MM): 3.3 mV / 50 kOhm.
Phono (crystal): 24 mV / 100 kOhm
Microphone (6,3mm jack): 3,3 mV / 50 kOhm
Aux: 200 mV / 100 kOhm Tape Play: 200 mV / 100 kOhm Main In: 530 mV / 100 kOhm
Antenna (FM: 75, 300 Ohm, AM).
Number of Outputs:
Tape Rec:
Pre Out:
Headphones (6.3mm jack)
2 pairs of loudspeakers
Technical Data
Amplifier
Continuous power (at distortion):
8 Ohm: 2x 28 W
4 Ohm: 2x 35 W
dynamic power:
8 Ohm: 100 W
4 Ohm:
Total harmonic distortion: < 0,5 % bei 1 kHz, Nennleistung
Dämpfungsfaktor: 50 bei 8 Ohm
Frequenzgang: 10 - 100.000 Hz, ± 3 dB
Signalrauschabstand:
Phono: >80 dB
High Level: > 100 dB
Stereo Channel Separation:
Tone Control:
Bass: + 11 dB, - 16.5 dB at 50 Hz
Treble: + 10 dB, - 9.5 dB at 10 kHz
Loudness: + 10 dB 50 Hz, + 7.5 dB at 10 kHz
High Filter: - 7.5 dB at 10 kHz
Low Filter (Subsonic): - 8 dB at 50 Hz
Tuner
Reception: FM/MW
Frequencies:
FM: 88 - 108 MHz
MW: 535 - 1605 KHz
Input sensitivity:
FM: 1.7µV
MW: 18µV
Frequency response: 24 - 20'000 Hz, + 0,5 dB, - 3 dB
Distortion factor: 0.4
Signal to noise ratio: 62 dB
Channel separation: 40 dB at 1 kHz
Selectivity: 40 dB at 400 kHz
Co-wave selection:
Spurious selection: 96 dB
Image frequency attenuation: 87 dB
IF attenuation:
AM suppression:
Special Features
Pre- and power stage separable

Ára: 120e Ft
Kipróbálható: Kiskőrösön
